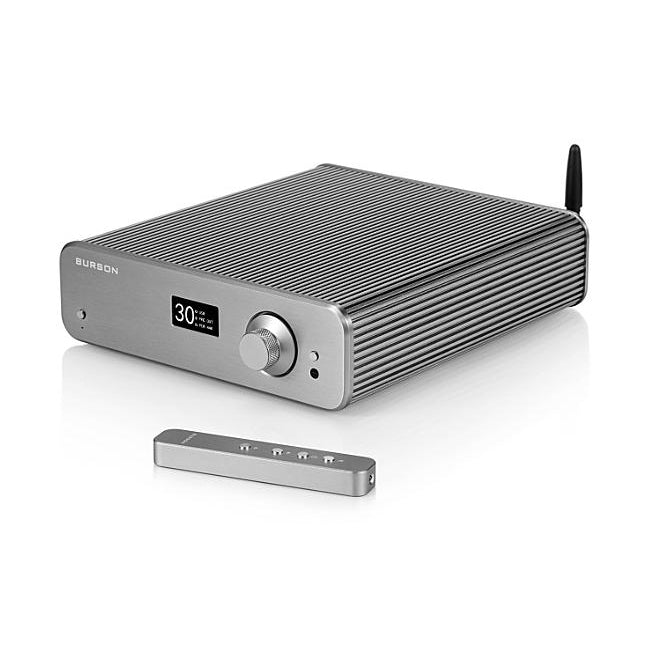

Burson Audio Composer 3X Performance | Standalone DAC and Preamp

From Burson
Burson Audio is challenging the conventional and pushing the boundaries of audio excellence through innovation.
An old school DAC / Pre Amp
We don’t use DSP to over-sample or reprocess the original digital signal. And we didn’t put a tube output in parallel to a solid-state output to sweeten the analogue signal and attract eyeballs. Instead, the Composer 3X Performance plays truthfully, from MP3s to native DSD512, without bass boosting or sugar coating.
With a powerful SABRE32/ESS9038Q2M DAC chip, a minimal signal path and a mighty power supply, the Composer follow an old school design approach, and it recreates the original art with pinpoint accuracy.
A Timeless Classic
But hang on! Don’t a lot of high-end DACs use ESS9038 and Xmos, and lots of DACs claim to use high-end parts. Without a glowing tube output, a porthole to peek at it and a fancy DSP sales pitch, what makes the Composer unique!?
Every music composer works with the same set of notes. Those with the right focus and experience create timeless classics by arranging them in the right way. Those wanting to shock and collect “likes”, those using focus groups to put together designs instead of using their hearts usually create something forgettable. The Composer 3X Performance is excellent because we did the hard yards. It sounds incredible in the old school way, and we know it is a classic.

Specs



Measurement

Package Content



Input impedance:
38 KOhms
Composer 3X Performance. Model # M-80X
USB Cable


Frequency response:
± 1 dB 0 – 58Khz
Remote Control

24V Power Unit


THD:
<0.0017%
RCA Cable



Output impedance (Pre Out / DAC Out):
10 Ohm / 25 Ohm
Power Cable











General



Inputs:
USB, Optical Toslink, BlueTooth 5.0, microphone
Weight:
app. 3 kg


Outputs:
1 x XLR Pre Out / DAC Out 1 X RCA Pre Out / DAC Out
Dimensions:
200 X 250 X 60(mm)








DAC Spec

Asynchronous Isochronous USB Spec



Channel Separation:
142 dB @ 1KHz, 135 dB @ 20KHz
Desktop OS:
Windows XP, 7, 8, 10 Mac OSX


THD+N:
0.0005% @ 1KHz, 0dBFS
Desktop OS:
iOS* , Android (OTG support)


COAX & Toslink / SPDIF :
up to 24bit 192K
PCM Support:
PCM ? 768kHz @ 16, 24 or 32bits




Native DSD:
Native DSD 64 / 128 / 256 / 512


Bluetooth Input
Bluetooth 5.0 aptX HD (Qualcomm CSR8675)
DSD over PCM:
DoP64 / DoP128 / DoP256/Dop512



In the Box

Burson Composer Unit
IC Opamps for warranty diagnostic use.
USB-C to USB-C Cable
Remote Control
Hex key

Power Supply
Burson Audio Composer 3X Performance User Manual
