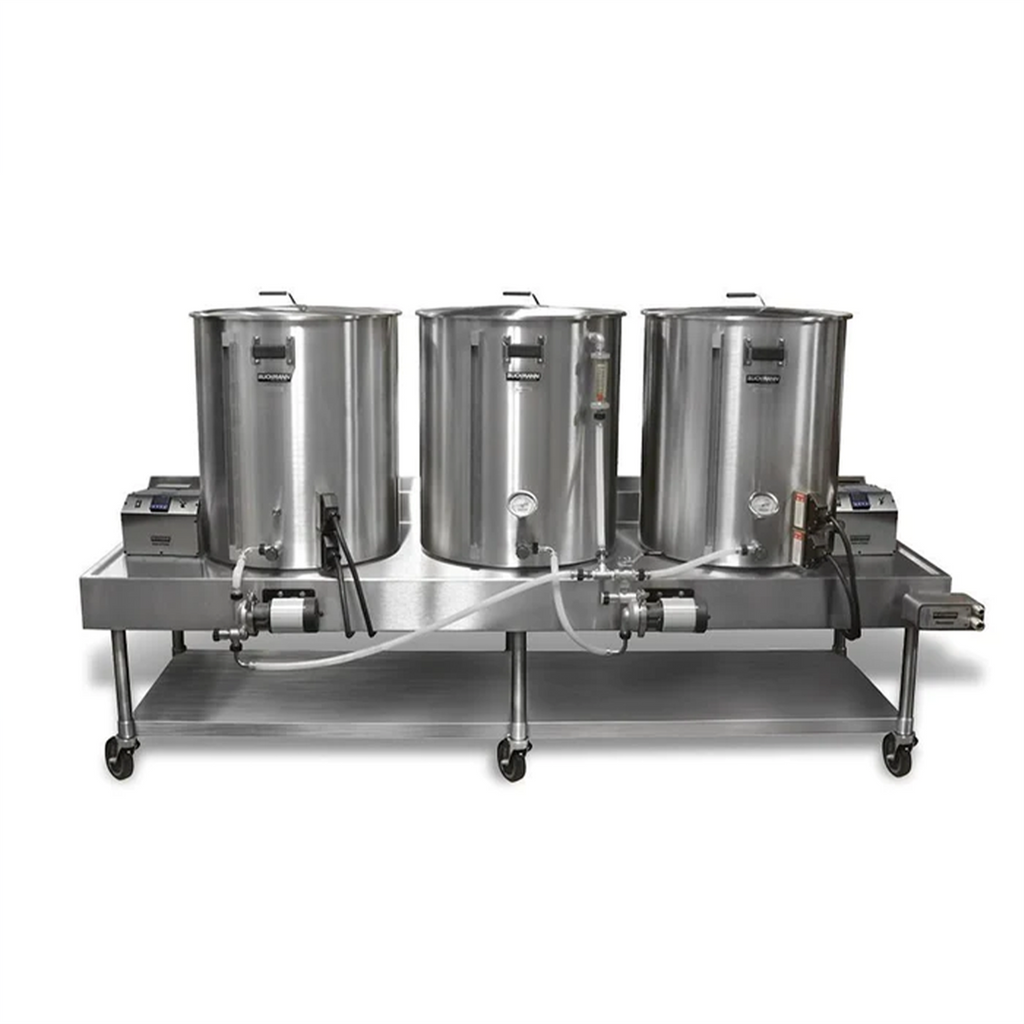

Blichmann | Electric All Grain Brewing Pilot System (HERMS) - 1 BBL

Blichmann Engineering Pro Pilot Systems are true turnkey brewhouses that include everything you need to get up and running FAST! Perfect for taprooms and neighbourhood breweries. No fuss, no hassle. Just pure brewing power.
FEATURES

Mash Tun

55 gallon electric BoilerMaker™
240V BoilCoil™
HERMS Coil

Boil Kettle / Hot Liquor Tank

55 gallon electric BoilerMaker™
240v BoilCoil™
Whirlpool Kit

Controller

Two BrewCommander™ brewhouse controllers

Pump

Two RipTide™ brewing pumps

Table

96” x 30” brewing table
24” height for ergonomic access to kettles

*Table includes a junction box, not a receptacle box.
Misc. Accessories

Hoses and fittings
Therminator™ wort chiller

Electrical Requirements

Four 240v 30 Amp GFCI L630R outlets
One 120v 15 Amp GFCI outlet

DESCRIPTION

Kettles

Heavy-gauge 304 stainless steel
G2 Linear Flow Valve disassembles in seconds for easy cleaning, allows precise control of flow, and orients in any direction
Rivet-free handles, rugged cool touch grips, and oriented for easy carrying
Borosilicate glass level gauge
Dip tube with rotating racking arm
Lifetime limited warranty

Accessories

Patented Button Louver™ false bottom
AutoSparge™ automatically sets hot liquor flow rate and liquid level in the mash tun
Adjustable viewing angle thermometer
Whirlpool fitting in boil kettle

BoilCoilTM

Less than 30 W/in2, nearly half of the typical ultra-low watt density for cleaning
Engineered to perform optimally with BoilerMakerTM G2 brew kettle and provide consistent heating performance, increase boil quality, and reduce boil-off rate
Robust stainless steel construction
Ultra-low watt density means no chance of scorching when used as directed
The 240v model includes a 12 foot factory-wired cable with molded twist-lock L630P plug
Removable, custom-engineered plug that makes cleaning a snap

RipTide™ Brewing Pump

Ultra-quiet motor
Tri-clamp disassembly for easy cleaning
Integral G2 Linear Flow Valve

BrewCommander™ Brewhouse Controller

Intuitive touchscreen interface
Keypad data entry
Advanced temperature control algorithm
Automated step mashing with up to 5 steps and 9 profiles
Boil addition times with up to 7 additions and 9 profiles
Integral pump switch
Lab-grade precision thermometer that is superior to RTDs
Advanced customizable settings
Mash step ramp rate delay
HERMS / RIMS offsets
Audible alarms
Upgradable firmware
Switchable between table and wall mounting
Modular with multiple unit connections possible
Optional relay modules allow control of a single kettle with up to 5 heating elements all on one controller
Optional SparkBox™ Remote Ignition Module
Offered in electric and gas versions

Heavy-Duty Custom Table

14-gauge 304 stainless steel
Drip ledge to contain spills
Apron to mount accessories
Stainless steel legs and lower storage shelf
Built-in junction boxes
Heavy-duty casters for mobility
Height-adjusting lower storage shelf
Made in USA
