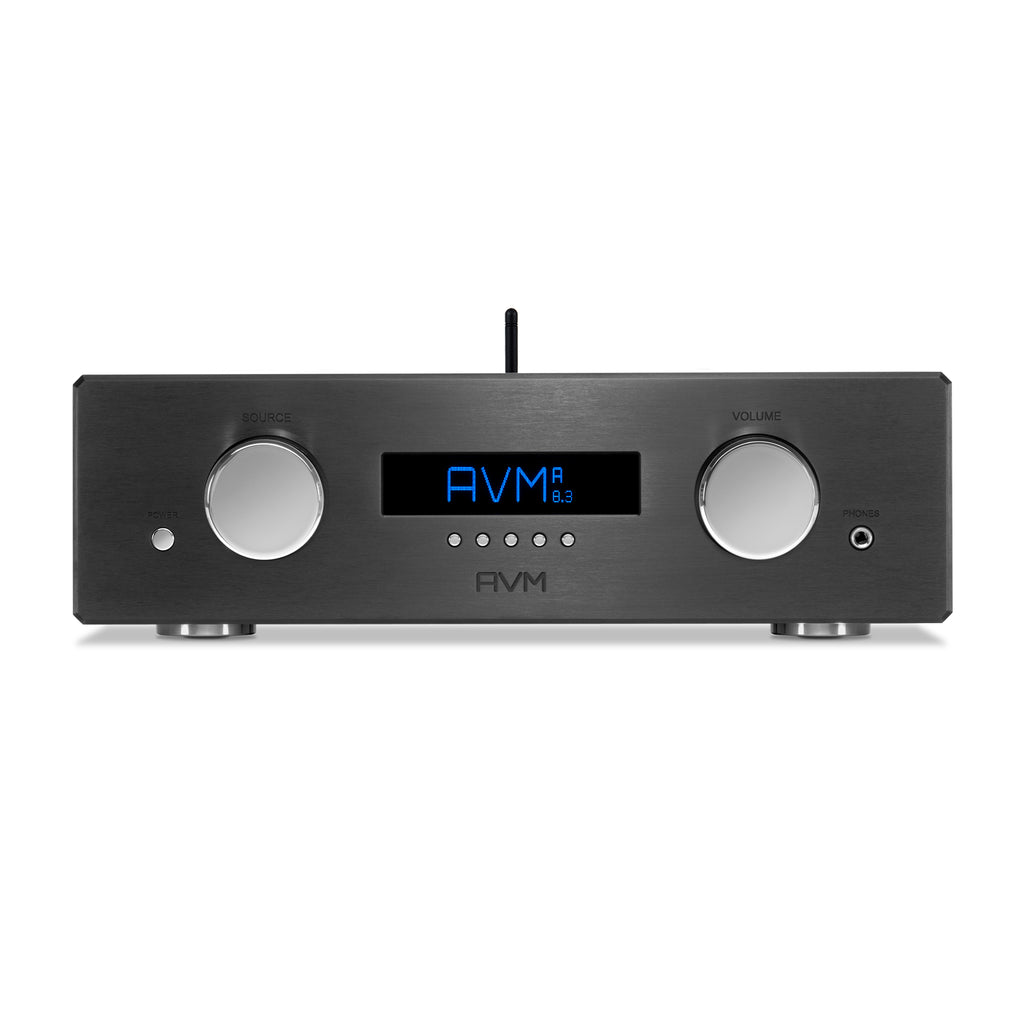

AVM A 8.3 | Integrated Amplifier

The A 8.3 integrated amp provides world-class sound quality and versatility in a single-chassis unit. A true dual mono design with four separate power supplies and a tube input stage, the A 8.3 provides relaxed and detailed sound and rock-solid stereo imaging coupled to the dynamic drive provided by its high-current MOSFET power amplifier. With 2 sets of speaker terminals and 225 watts/channel into 8 ohms, compatibility is assured with even the most demanding speakers. Home theater/AV bypass and a pair of 10 volt triggers ensure usability with any system, and a Class A headphone amplifier is provided.
Specifications



Analog Inputs: 1 x XLR, 4 x RCA

Digital Inputs: 2 x S/PDIF Coax, 2 x S/PDIF Optical, 1 x USB B

Analog Outputs: 1 x Line/Fix Out XLR, 1 x Line/Fix Out RCA, 1 x Pre/Var Out RCA

Output Power: 2 x 330 W [4Ω]

Headphone Output: Class-A 6,35 mm

Speaker Outputs: 2 Pairs

DSD: DSD128 (5,6 MHz) via USB B

Inputs: Analog RCA, Analog XLR, Digital Coax, Digital Opto, USB B

Outputs: Analog RCA, Analog XLR, Headphone, Line/Fix Out, Loudspeaker, Pre/Var Out

Tone Control: Balance, Bass, Treble, scalable Loudness

Trigger Outputs: 2 x 3,5 mm

Tube Line Stage: A 8.3: OVATION 803 T

Bluetooth: Bluetooth (5.0 Standard)

Power Consumption: 1500 W max / < 0.5 W standby

Included Remote Control: RC 3 Aluminium Remote Control

Optional Remote Controls: RC 8 Remote Control

Product Dimensions: 355 x 430 x 130 mm (L x W x H)

Product Weight: 22 kg
