Description

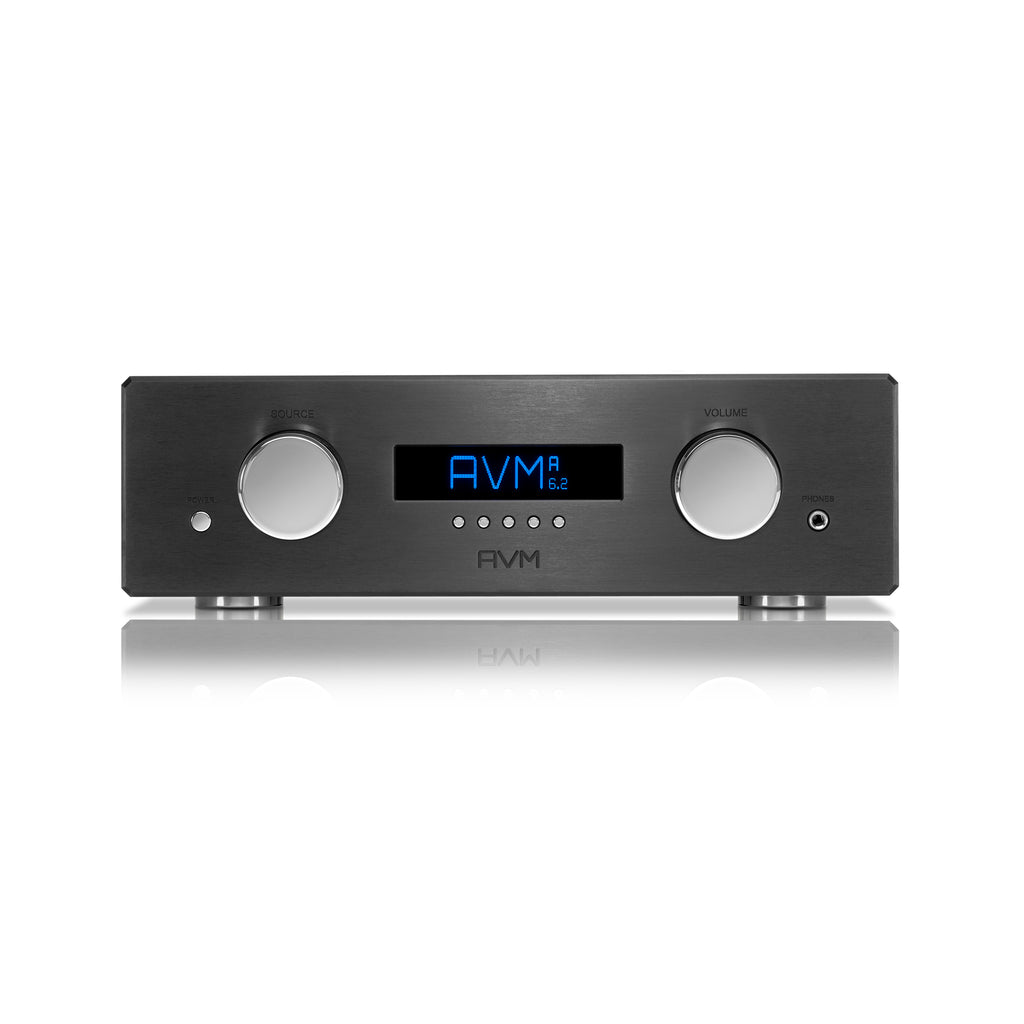

The A 6.2 ME (Master Edition) is an integrated amp designed with a single goal: provide the best sound quality attainable. All parts are as high-quality as possible, selected for their sonic characteristics. The A 6.2 ME is a versatile but basic integrated amplifier, without additional elements such as a phono stage, DAC, or streamer. Utilizing a high-speed MOSFET output stage, it produces 180 watts per channel into 8 ohms, 300 watts per channel into 4 ohms,
The A 6.2 ME’s massive power supply features an oversized toroidal transformer and 120,000 microfarads of AVM’s proprietary capacitors, enabling it to run in purist Class A for most normal listening, while ensuring that even the most-demanding loudspeakers can be driven to full orchestral levels. Other refinements include a discrete headphone amp that runs completely in Class A; internal cabling selected for improved sound quality and noise rejection; black circuit boards with heavy gold traces for improved stability and heat rejection; speaker terminals machined in-house by AVM; and control knobs machined in unit complete with axles to ensure perfect balance and years of trouble-free operation.
Features
Class A/B integrated amplifier with over 180/300 W/channel (into 8/4 ohms)
MOS-FET high current amplifier: 12 MOS-FET transistors per channel deliver max. 180 Ampere
4 separate power supplies: main power supply, processor unit power supply, silent power supply for input circuit left & right
Analog fully balanced input stages, completely DC coupled
Fully balanced volume control with 256 control stages
Double mono construction eliminates mutual interference between both channels
Input stages are supplied via separate power supply unit
High level inputs: 2 XLR + 5 RCA
Home Theatre Pass Through selectable on high level inputs
2 preamplifier outputs (XLR and RCA), fixed level output (RCA)
Class-A headphone amplifier with 6.3 mm jack plug
Connection for external IR receiver
Mains phase indicator
Sound control with bypass function
Parametric, scalable loudness control
Large, blue illuminated graphic display
Extensive menu functions (adjustable input sensitivity, individual input designation and much more)
The A 6.2 ME’s massive power supply features an oversized toroidal transformer and 120,000 microfarads of AVM’s proprietary capacitors, enabling it to run in purist Class A for most normal listening, while ensuring that even the most-demanding loudspeakers can be driven to full orchestral levels. Other refinements include a discrete headphone amp that runs completely in Class A; internal cabling selected for improved sound quality and noise rejection; black circuit boards with heavy gold traces for improved stability and heat rejection; speaker terminals machined in-house by AVM; and control knobs machined in unit complete with axles to ensure perfect balance and years of trouble-free operation.
Features
Class A/B integrated amplifier with over 180/300 W/channel (into 8/4 ohms)
MOS-FET high current amplifier: 12 MOS-FET transistors per channel deliver max. 180 Ampere
4 separate power supplies: main power supply, processor unit power supply, silent power supply for input circuit left & right
Analog fully balanced input stages, completely DC coupled
Fully balanced volume control with 256 control stages
Double mono construction eliminates mutual interference between both channels
Input stages are supplied via separate power supply unit
High level inputs: 2 XLR + 5 RCA
Home Theatre Pass Through selectable on high level inputs
2 preamplifier outputs (XLR and RCA), fixed level output (RCA)
Class-A headphone amplifier with 6.3 mm jack plug
Connection for external IR receiver
Mains phase indicator
Sound control with bypass function
Parametric, scalable loudness control
Large, blue illuminated graphic display
Extensive menu functions (adjustable input sensitivity, individual input designation and much more)
SKU: AV4-6A0-B
