Description

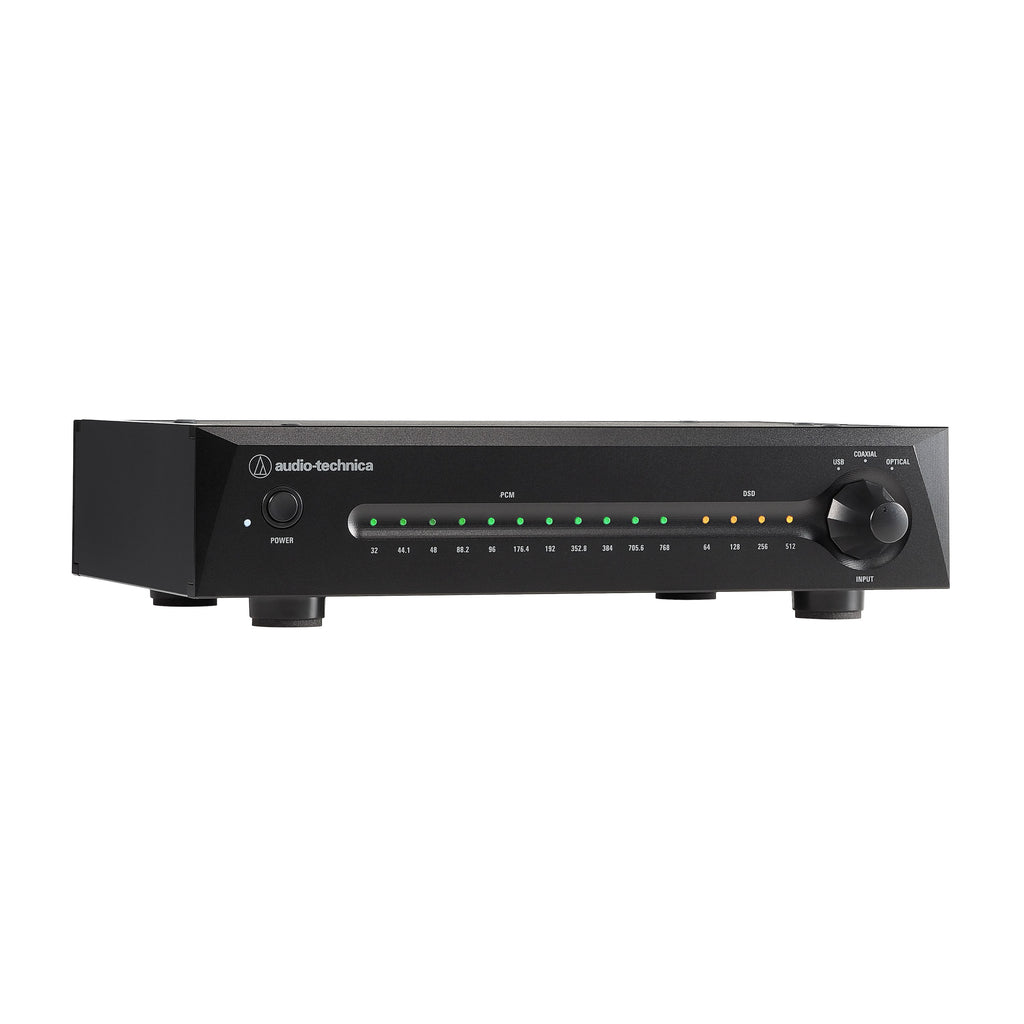

The increased popularity of high-resolution digital sound sources has resulted in a growing need for high-quality sound with balanced hi-fi headphones. To meet this need, Audio-Technica is offering the AT-BHA100 balanced headphone amplifier and AT-DAC100 digital-to-analog converter, ideal for use with hi-fi headphones such as the ATH-ADX5000 and the ATH-AW Series. This compact desktop unit is compatible with Direct Stream Digital (DSD) and other high-definition formats to reproduce every detail of the original recording.
Features
Compatible with a wide variety of high-definition formats
Low-distortion DAC with high signal-to-noise ratio
Specifically tuned for vacuum tube preamplifiers
High-quality power supply
High-quality audio-grade components
Nichicon chemical capacitors
WIMA film capacitor
Support for USB-C and other digital inputs
Horizontal or vertical orientation for greater layout flexibility
External AC adapter
Specs
System requirements
Computer equipped with a USB 2.0 compatible USB port
CPU: Intel Core i3 CPU 2.2 GHz or higher,
or AMD CPU equivalent to Intel RAM: 32 bit OS,
2 GB or more, 64 bit OS 4 GB or more
Supported OS
Windows 8.1, Windows 10, and Mac OS X or later
(Please check the product's web page for the latest information.)
Power supply
100 - 240 VAC, 50/60 Hz, 15 VDC/2.4 A (AC adapter provided)
Input terminals
USB Type-B (44.1 kHz to 768 kHz, 16 to 32 bit DSD64, DSD128, DSD256, DSD512)
USB Type-C (44.1 kHz to 768 kHz, 16 to 32 bit DSD64, DSD128, DSD256, DSD512)
Coaxial digital (32 kHz to 192 kHz, 16 to 24 bit)
Optical digital (32 kHz to 192 kHz, 16 to 24 bit)
Output terminals
Analog output (pin jack) × 2
Frequency response
5 Hz to 90 kHz (0, -3 dB)
Total harmonic distortion
0.005% or less (20 Hz to 20 kHz)
Signal-to-noise ratio
105 dB (A-weighted, 1 Vrms output )
Separation between channels
105 dB (20 Hz to 20 kHz)
Power consumption
Maximum 3 W
Dimensions
210 mm (8.27") x 135 mm (5.31") x 44 mm (1.73")
(W x D x H) (excluding protrusions)
Weight
About 1.0 kg (35.3 oz)
Included accessories
AC adapter (approx. 1.5 m (4.9')),
Power cord, Foot x 6, Stand x 2
Features
Compatible with a wide variety of high-definition formats
Low-distortion DAC with high signal-to-noise ratio
Specifically tuned for vacuum tube preamplifiers
High-quality power supply
High-quality audio-grade components
Nichicon chemical capacitors
WIMA film capacitor
Support for USB-C and other digital inputs
Horizontal or vertical orientation for greater layout flexibility
External AC adapter
Specs
System requirements
Computer equipped with a USB 2.0 compatible USB port
CPU: Intel Core i3 CPU 2.2 GHz or higher,
or AMD CPU equivalent to Intel RAM: 32 bit OS,
2 GB or more, 64 bit OS 4 GB or more
Supported OS
Windows 8.1, Windows 10, and Mac OS X or later
(Please check the product's web page for the latest information.)
Power supply
100 - 240 VAC, 50/60 Hz, 15 VDC/2.4 A (AC adapter provided)
Input terminals
USB Type-B (44.1 kHz to 768 kHz, 16 to 32 bit DSD64, DSD128, DSD256, DSD512)
USB Type-C (44.1 kHz to 768 kHz, 16 to 32 bit DSD64, DSD128, DSD256, DSD512)
Coaxial digital (32 kHz to 192 kHz, 16 to 24 bit)
Optical digital (32 kHz to 192 kHz, 16 to 24 bit)
Output terminals
Analog output (pin jack) × 2
Frequency response
5 Hz to 90 kHz (0, -3 dB)
Total harmonic distortion
0.005% or less (20 Hz to 20 kHz)
Signal-to-noise ratio
105 dB (A-weighted, 1 Vrms output )
Separation between channels
105 dB (20 Hz to 20 kHz)
Power consumption
Maximum 3 W
Dimensions
210 mm (8.27") x 135 mm (5.31") x 44 mm (1.73")
(W x D x H) (excluding protrusions)
Weight
About 1.0 kg (35.3 oz)
Included accessories
AC adapter (approx. 1.5 m (4.9')),
Power cord, Foot x 6, Stand x 2
SKU: ATDAC100
