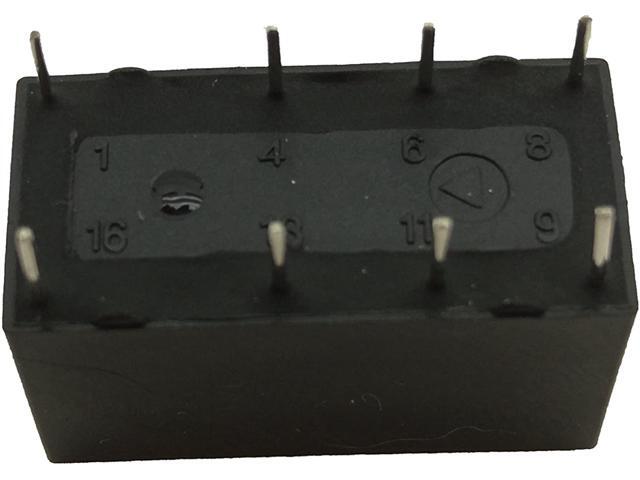

9vdc (9 volt DC) Relay - DPDT PCB 8-Pin Mount - Non-Latching Non-Polarized Electronic Low Signal High Sensitivity Relay Module for DIY Electronics...
Newegg
5.0
1 review
Description
9v DC Double Pole Double Throw 2 Form C (DPDT) bifurcated-cross-bar gold clad silver contacts. Highly Sensitive Signal Relay - Low Coil Power Consumption 0.2w with a Coil Resistance of 405 and Nominal Voltage of 9 volts DC Maximum Current Load is 1 amp (1a/1000ma) with a 8ms operation time and a 5ms release time (max) 8pin PC Board (PCB) Through-Hole Mount - standard 5.1mm x 7.6mm pin spacing Dip-2c style electromagnet switch relay matching 16-pin IC socket Cross Reference Similar Part Numbers:
SKU: 445836815213022022046160
