xDuoo X5 | Digital Audio Player

Enjoy Low Distortion and Smooth Tonality in Your Music with the xDuoo X5 Portable Music Player

High-resolution DAP with a balanced output circuit
Supports up to PCM 384kHz/32Bit and DSD256
Features 3.5-inch IPS touchscreen
Two Cirrus Logic CS43131 DAC chips
Equipped with 4.4mm balanced output

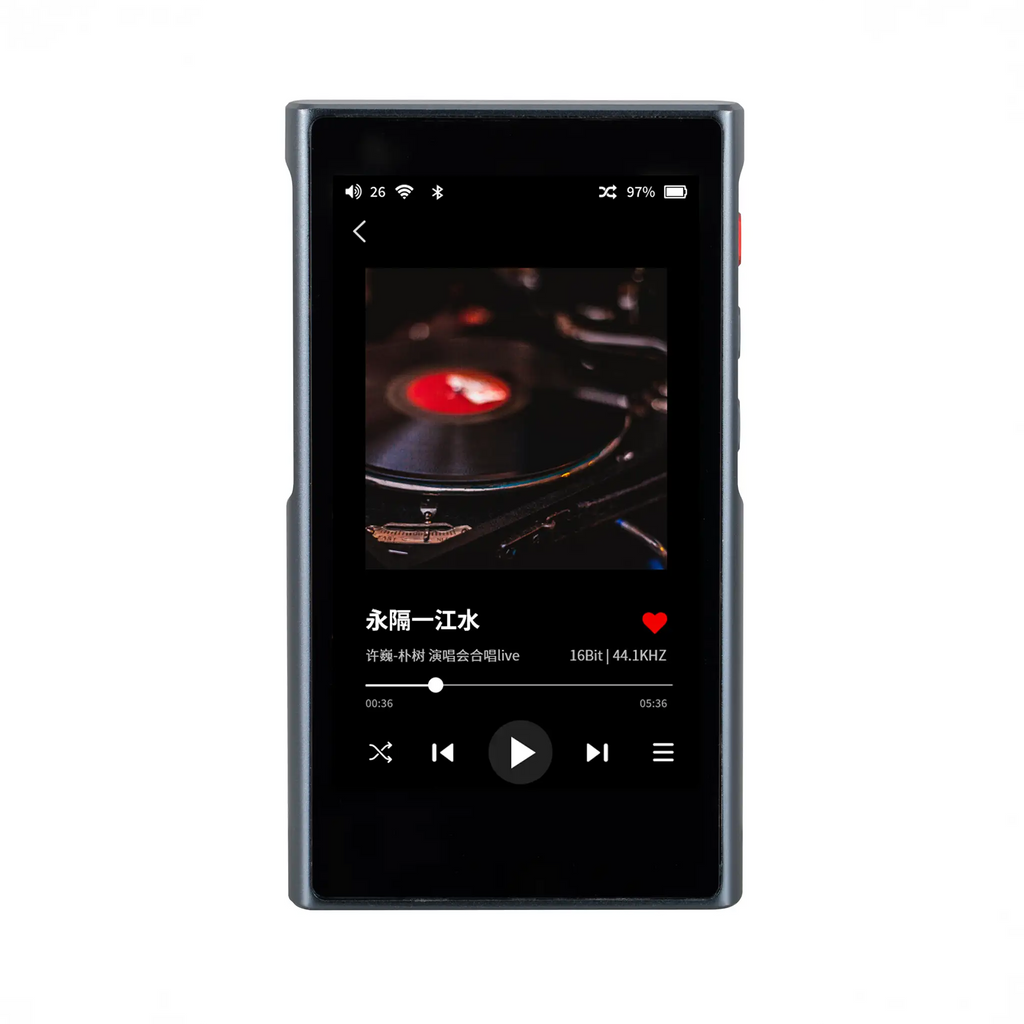

xDuoo X5
The xDuoo X5 is a high-fidelity lossless digital music player, designed for pure, immersive sound. It features a 3.5-inch IPS high-definition touch screen, providing stunning clarity. The DAP employs two Cirrus Logic CS43131 DAC chips to form a true balanced output circuit. The decoding supports lossless formats such as DSD, DXD, WAV, APE, FLAC, and AIFF, with a maximum sampling rate of 384kHz/32Bit and DSD256.
In addition, the X5 digital audio player is equipped with two-way bluetooth functionality and supports formats such as SBC, AAC, and LDAC. With an output power that reaches 270mW, the X5 is capable of driving various types of headphones.
Feature Packed
Supports HD Lossless SongsThe X5 accurately restores every note, allowing you to experience the authentic master disc quality music.
Supports Large-Capacity Memory CardsWith support up to 1TB TF/Micro SD card, the X5 can store more than 26,000 WAV or 40,000 FLAC/APE lossless songs.
EQ AdjustmentThe EQ adjustment with a 10-band gain control range of ±12dB allows you to finely adjust each musical frequency band, making the music better suit your listening preferences.
Dual DAC Chips with a Balanced ArchitectureTwo CS43131 chips are employed to form a balanced audio architecture. This setup offers higher resolution, better dynamics, as well as lower distortion and noise floor.

4.4mm Balanced Headphone JackEquipped with a 4.4 balanced headphone jack, the X5 features a higher SNR and a more dynamic, captivating performance.
USB DAC FunctionWhen connected to a computer's USB port, the digital audio player can transfer music files and also be used as a USB DAC, improving the audio quality of the computer's output.
In-Car Play ModeBy connecting to the car's USB power supply, the X5 can start playing music simultaneously with the car's ignition. It provides high-quality audio for your car's sound system, allowing you to enjoy great music on the go.
Voice-Activated Song SearchOnce connected to WiFi, the DAP supports searching for songs via voice commands, enabling you to quickly find the songs you love.
Specifications


Power Source: Built-in 3.7V/2600mAh lithium polymer battery

Screen: 3.5-inch IPS high-definition screen with a resolution of 480×800 pixels

TF Card Support: Supports up to 1TB TF/Micro SD cards (FAT32, EXFAT, NTFS)

Formats:

DSD: DSD64-256(DSF、DFF、ISO)
WAV: 16-24Bit/44.1k-384kHz
AIFF: 16-24Bit/44.1k-192kHz
FLAC: 16-24Bit/44.1k-192kHz
APE: 16-24Bit/44.1k-192kHz
MP3:16Kbps-320 Kbps WMA, OGG, M4A, AAC



Bluetooth: 4.2

Suitable Headphone Impedance: 16 - 300Ω

Battery Life: Approx. 10hrs

Charging Time: Approx. 3hrs

Size: 10.5cm x 6.0cm x 1.6cm

Weight: 0.15kg
xDuoo 1 Year Warranty

In the Box

xDuoo X5 Digital Audio Player
User Manual
