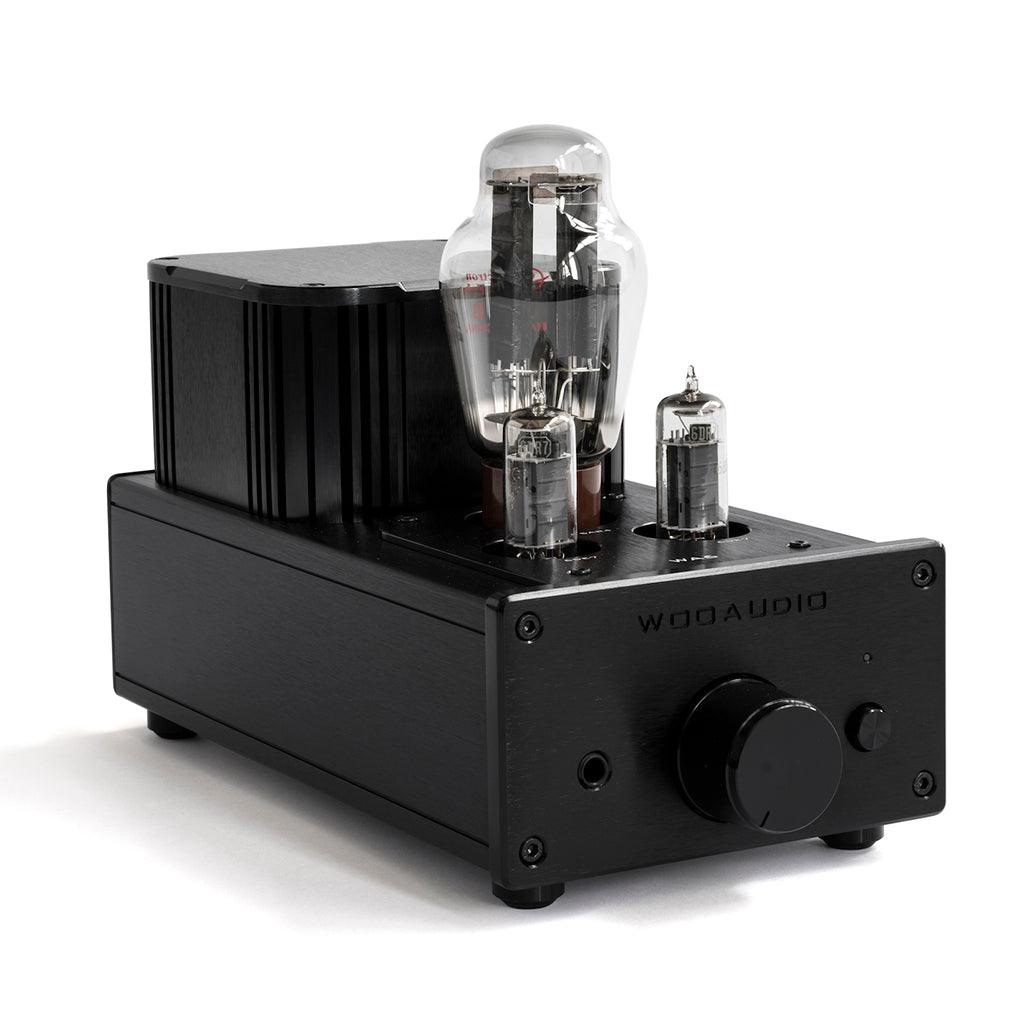

Handcrafted since 2008, WA6 (2nd gen) has set the standard for headphone amplifiers in its class. It can drive full-size headphones and in-ear monitors ranging from 8–600 Ohms with ease. WA6 (2nd gen) is an all-tube design, Class-A, transformer-coupled, single-ended triode (SET) amplifier. Under the hood of the all aluminum chassis is the same clean point-to-point wiring and premium quality parts found in our top tier models. WA6 (2nd gen) is an exceptional headphone amplifier for every music lover.
*AC power cord and audio cables are not included
Highlights
2nd gen is a minor update to driver/power tubes from 6v to 13v
Tubes: 13DE7 driver/power x 2, 5U4G rectifier x 1
Polytetrafluoroethylene (PTFE) tube sockets
Singled-ended Triode, Class-A
Transformer-coupled, Point-to-Point wiring
Pseudo-dual power supply
RCA input x 1
HI / LO headphone impedance switch
1/4" (6.3mm) stereo headphone output (8–600 Ohms)
ALPS potentiometer and power switch
Anodized aluminum chassis, available in black or silver
Self-biasing with compatible tubes
Global voltage (100v–220v) without converter
Dimensions: 6"(H), 5½"(W), 13"(D), 13 lbs.
Designed and assembled in New York, USA
Three-year limited warranty
In The Box
Woo Audio WA6 (2nd gen) headphone amplifier x 1
13DE7 vacuum tube x 2
5U4G vacuum tube x 1
Quick start guide
*AC power cord and audio cables are not included
