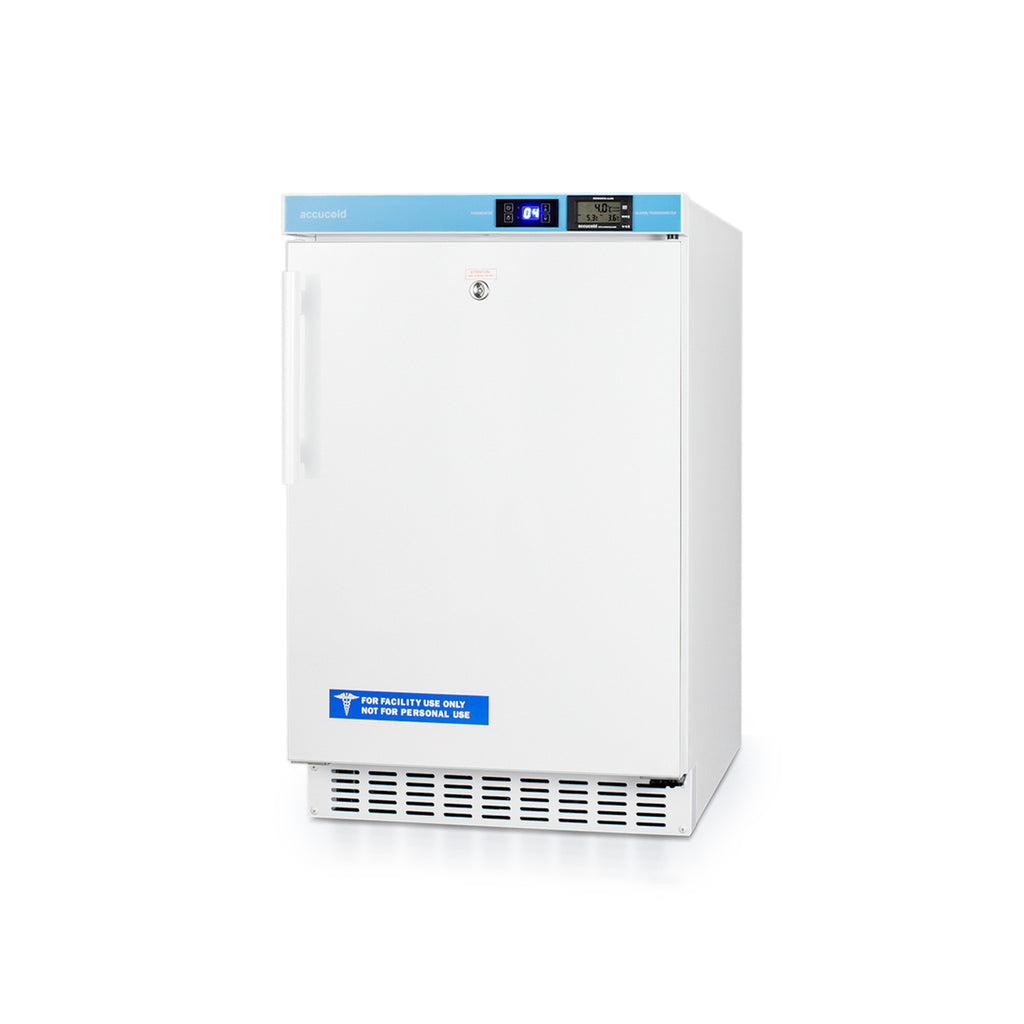

Summit Accucold | 20" Wide Built-In Pharmacy-Grade All-Freezer, ADA Compliant (ACF33L)

Flat rate shipping click HERE









Frost-free operation to ensure minimum user maintenance in doctors' offices, pharmacies, hospitals, and other healthcare facilities










KEY FEATURES


Frost-Free Operation
Foamed-in-Place Cabinet for Efficient Insulation
Keyed Lock

High/Low Temp Alarm

2.65 Cu Ft Capacity

CARB Compliant

31.38" H x 19.5" W x 22.75" D


DESCRIPTION

Accucold’s Pharmaceutical Series features refrigeration specially designed to meet current CDC and VFC guidelines for vaccine storage, with built-in choices sized to fit under ADA compliant counters.The ACF33L all-freezer is sized at just under 32" high, with a front-breathing design for built-in installation under lower ADA compliant counters and fully finished cabinet that also allows freestanding use. Its sealed back allows for a better fit and easier cleanability. A hospital grade cord with a 'green dot' plug provides added safety in high traffic areas and a factory-installed keyed lock is located towards the top of the unit for convenient security. The user-reversible door includes a side-mounted handle for added convenience, with a self-closing mechanism to ensure items aren't accidentally exposed to warm air. Four adjustable leveling legs allow you to raise the height for a better fit under standard countertops. For optimum temperature management, the ACF33L features an external control panel, allowing users to adjust and monitor the temperature without opening the door. Additionally, it is equipped with a thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit (as recommended by the CDC and VFC). The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a bottle filled with glass beads and secured inside the center shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment as needed. (Note: for this unit with a NIST calibrated thermometer, see the ACF33LCAL.) Inside, the 2.65 cu.ft. interior includes two adjustable wire shelves for optimum circulation, with one center fixed shelf to keep the temperature probe in place. The foamed-in-place cabinet and door liner affords added insulation of the interior for improved temperature stability, while an internal fan helps to evenly cool the interior from top to bottom. This model utilizes frost-free operation to minimize user maintenance. LED lighting helps to provide a clean, energy efficient view. At just under 20" wide, the ACF33L is the perfect storage solution for doctors' offices, veterinary clinics, pharmacies, and similar healthcare environments. For a matching refrigerator, see the ACR45L (solid door) or ACR46GL (glass door). Additional purpose-built choices for vaccine storage are available in a variety of sizes. Browse the Accucold website to explore the full product line. NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.
FEATURES


























Vaccine freezer
Purpose-built to meet the recommendations of the CDC and VFC for reliable vaccine storage


ADA compliant
Sized just under 32" high to allow installation under lower ADA compliant counters


Built-in capable
Front-breathing system allows the unit to be installed under cabinets with minimum clearance


Slim 20" width
Full 2.65 cu.ft. capacity inside conveniently slim footprint


External temperature readout
Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button


Digital thermostat
Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience


High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range


Buffered temperature probe
Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines


Factory installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)


Frost-free
No-frost operation for minimum user maintenance


Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom


Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety in high traffic areas


Adjustable wire shelves
Rearrange freezer space to accommodate all sizes or remove shelves for simple cleanup


Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials






LED lighting
Attractively illuminates the interior in a gentle white hue for easy viewing


3/8" access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment


Reversible door
User-reversible door swing makes it easy to adjust to your setting as needed


Foamed-in-place cabinet
Quality design ensures efficiently insulated interior


Sealed back
Space-saving design with no exposed coils for easier cleanability


Temperature memory function
Unit will retain its last settings when power is restored in the event of power loss


Self-closing door
Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures


Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance


Handle included
Side-mounted handle for user convenience (not required to operate the unit)


Fully finished white cabinet
Allows the unit to be used freestanding


Matching refrigerator
Pair with Accucold ACR45L (solid door) or ACR46GL (glass door) all-refrigerators to create a matching side-by-side or stackable set


100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals


CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations



SPECIFICATIONS





























Overview



Height of Cabinet
31.38" (80 cm)


Width
19.5" (50 cm)


Depth
22.75" (58 cm)


Depth with Handle
23.63" (60 cm)


Depth with door at 90°
41.0" (104 cm)


Capacity
2.65 cu.ft. (75 L)


Defrost Type
Frost-Free


Door
White


Cabinet
White


US Electrical Safety
ETL


Canadian Electrical Safety
ETL-C


Sanitation
ETL-S


Amps
2.0


Voltage/Frequency
115 V AC/60 Hz


Weight
81.0 lbs. (37 kg)


Shipping Weight
95.0 lbs. (43 kg)


Parts & Labor Warranty
1 Year


Compressor Warranty
5 Years


UPC
761101050751











Freezer



Door Swing
RHD


Reversible
Yes


Interior Height
21.25" (54 cm)


Interior Width
15.0" (38 cm)


Interior Depth
16.0" (41 cm)


Shelf Type
Wire


Shelf Qty
3


Adjustable Shelves
Yes


Thermostat Type
Digital


Interior Light
Yes


Fan Type
Interior and Exterior


Refrigerant Type
R600a


Refrigerant Amount
1.23 oz.


High Side PSI
270.0


Low Side PSI
105.0


Compressor Step Height
3.5" (9 cm)


Compressor Step Width
15.0" (38 cm)


Compressor Step Depth
4.75" (12 cm)


Temperature Range
-30 to -11.6ºC /-22 to +11ºF


Sound Level
38.1 dB





































DOWNLOADS



BROCHURE w/ DRAWINGS

ACF33L.pdf



TECHNICAL DRAWING (.dwg) ACF33L_ACCUCOLD__FREEZER.dwg



ASSEMBLY DRAWING ACF33L_ASS_Y.pdf



USE & CAREACR45L_ACR46GL_ACF33L_EngFR_User_Manual_11.9.20.pdf


AL3_Alarm_Thermometer_Instructions.pdf
