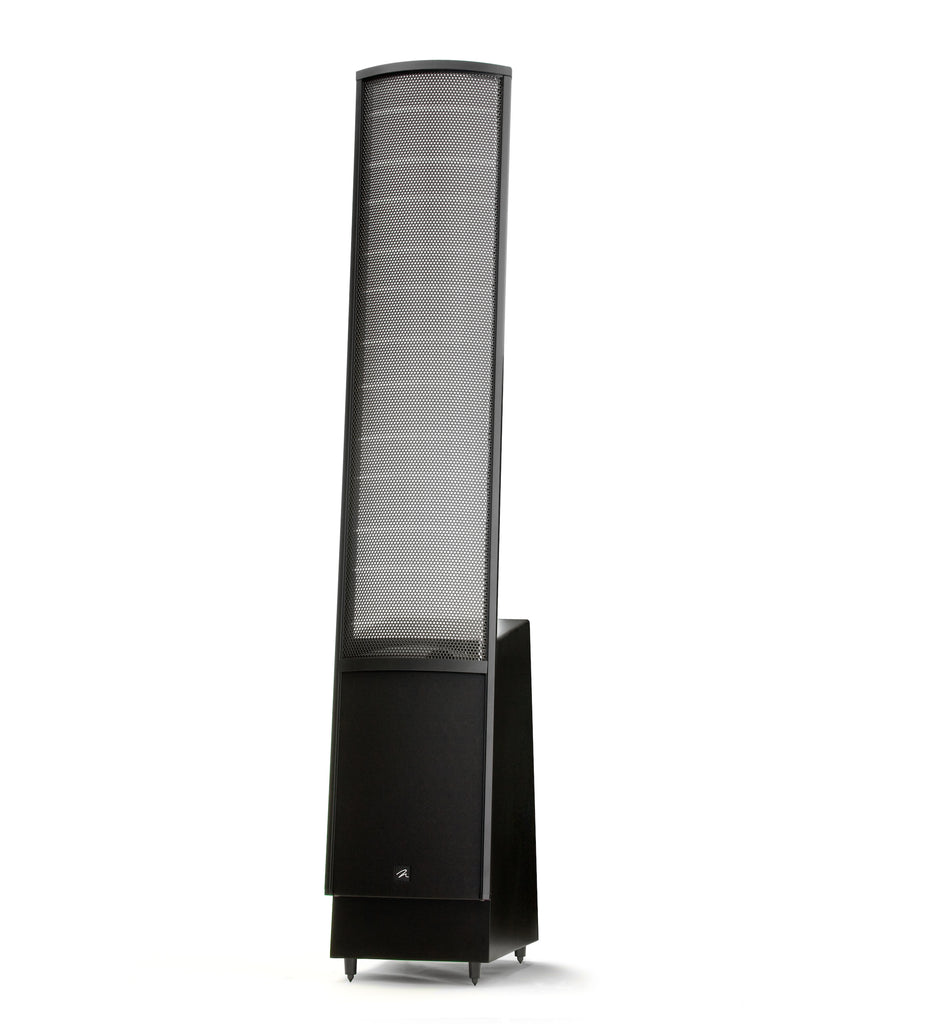

MartinLogan ElectroMotion ESL | Electrostatic Floorstanding Loudspeaker (Single Unit)

Experience a Bold Audio Statement with the ElectroMotion ESL

34" tall cuvilinear XStat performs like a mini-flagship
With 91dB sensitivity, ESL can be powered by most receivers and high-end amplifiers
AirFrame technology improves isolation and minimizes distortion


XStat Panel
A unique XStat™ transducer was developed for the ElectroMotion ESL to reduce the gauge thickness of the electrostatic panel's steel stators. The reduced gauge does not alter the performance characteristics of the panel. However, as a natural byproduct of tighter build tolerances, it does increase the visual transparency of the panel. The EM-ESL's new XStat panel is so visually transparent it nearly vanishes when you're sitting and listening.
Powerful Bass
A precise 8" high-excursion, perfectly balanced, audiophile grade, doped fiber cone woofer was custom designed exclusively for the EM-ESL by MartinLogan's in-house engineering team. This woofer precisely optimizes cone suspension and magnetic flux field to produce high levels of bass output and simultaneous precise midrange. The custom woofer's rigid light-weight diaphragm eliminates cone flexure and minimizes response time to achieve remarkably low-distortion approaching that of MartinLogan's award-winning electrostatic panel design.
Easy Connect and Adjustable Footing
Convenient push-style speaker terminals and curved inserts help guide speaker wire effortlessly into place. The rubber end caps on the terminal are also removable for the use of banana plugs instead of bare wire. The EM-ESL is supplied with sturdy, 3/8-16 ETC™ spikes, which can be used to fine tune vertical wave launch, enhance stability on thick carpets, and create tighter coupling between speaker and floor to provide a tighter and detailed bass performance. Each spike is conveniently covered by removable rubber end caps if you prefer not to use spikes.

Specifications


Frequency Response: 42–22,000 Hz ±3dB

Recommended Amplifier Power: 20—300 watts per channel

Horizontal Dispersion: 30°

Vertical Dispersion: 34" line source

Sensitivity: 91 dB/2.83 volts/meter

Impedance: 6Ω, 1.6 @ 20kHz Compatible with 4, 6, or 8Ω rated amplifiers

Crossover Frequency: 500Hz

High Frequency Transducer: XStat™ CLS™ electrostatic transducer

Panel Dimensions: 34" x 8.6"
Radiating Area: 292 in²



Low Frequency Transducer: 8" high excursion, high-rigidity paper cone with extended throw drive assembly, non-resonance asymmetrical chamber format; bass reflex

Components: Custom-wound audio transformer, air core coils, large steel laminate inductors, polyester capacitors, and low DF electrolytic capacitors

Inputs: Push style with banana jacks

Weight: 35.5 lbs

Dimensions: 52.1" x 9" x 16.3"
MartinLogan 5-Year Warranty
