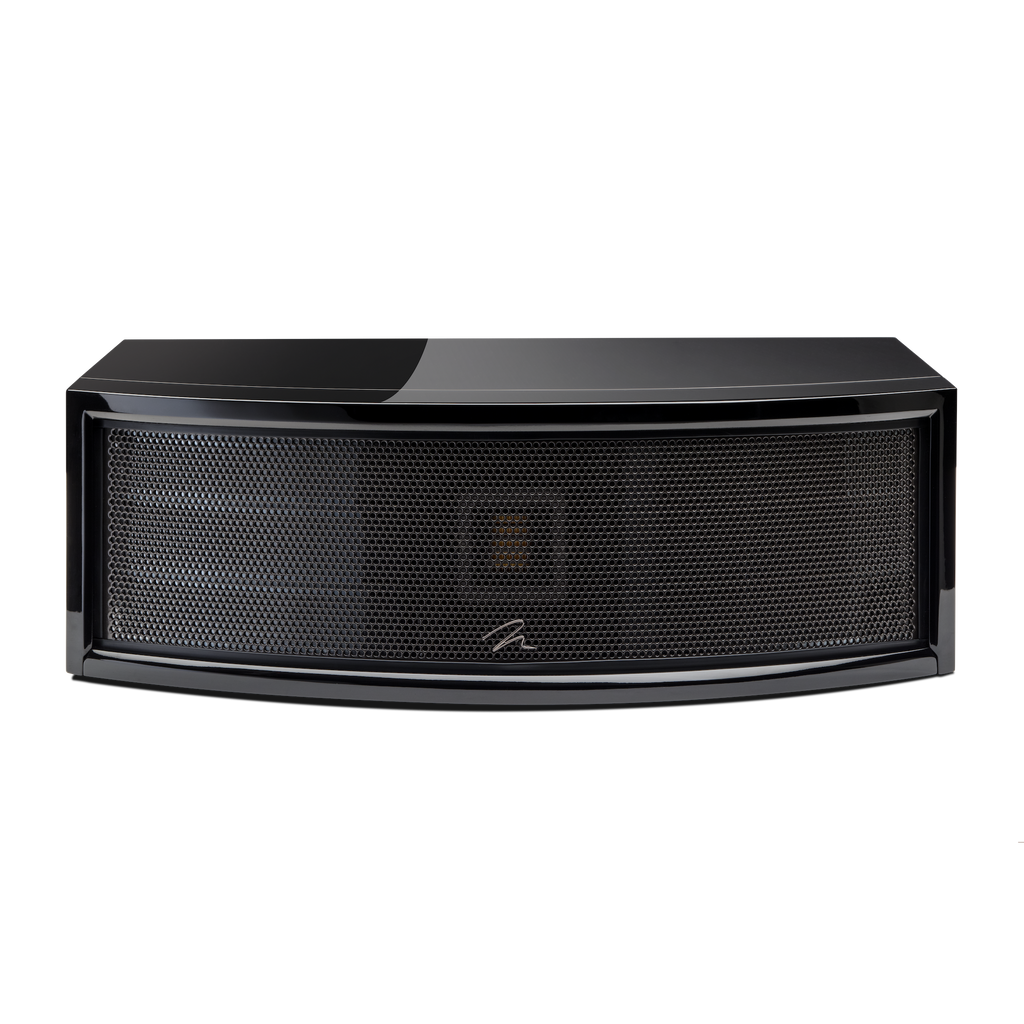

MartinLogan ElectroMotion ESL-C | Center Speaker (Single Unit)

ElectroMotion ESL C is a High-performance Electrostatic Center Channel

Crisp, detailed midrange provided by a Folded Motion Tweeter
Centerforce dual-woofer system for improve dynamics
An essential piece for your electrostatic home theater system

Dynamic Center Channel Performance
By adding a compact electrostatic panel to a center channel speaker, MartinLogan engineers have succeeded in expanding the performance dynamics of the most important speaker in your home theater system. Your center channel speaker needs to be able to reproduce the finest high frequency details. The midrange must be expansive; to reproduce every whisper of dialogue. Deep bass adds impact to the front-stage effects that anchor the action to your screen. The EM-ESL C accomplishes all this, and more.

Curvilinear Line Source
The EM-ESL C has a shallow height CLS (Curvilinear Line Source) XStat electrostatic panel wrapped around the front of the speaker enclosure. The gentle horizontal curve of the panel enhances the output of its deceptively compact 114-square-inch radiating area, extending mid-range dispersion patterns and blending the performance seamlessly with your front-stage ElectroMotion loudspeakers.
Specification


Frequency Response: 66–23,000 Hz ±3dB

Recommended Amplifier Power: 20—300 watts per channel

Horizontal Dispersion: 30°

Vertical Dispersion: 6.375" line source

Sensitivity: 89 dB/2.83 volts/meter

Impedance: 4Ω Compatible with 4, 6, or 8Ω rated amplifiers

Crossover Frequency: 600, 3400 Hz

High Frequency Transducer: (x1) 1" x 1.4" Folded Motion Transducer with 5.25" x 1.75" diaphragm

Mid Frequency Transducer: XStat™ CLS™ electrostatic transducer

Panel Dimensions: (x2) 6.375" x 9"
Radiating Area: 114 in²



Low Frequency Transducer: (x2) 5.25" high excursion, high-rigidity aluminum cone with extended throw driver assembly, non-resonance asymmetrical chamber format

Components: Custom-wound audio transformer, air core coils, low dcr steel laminate coils, polyester capacitors

Inputs: Custom 5-way tool-less binding posts

Weight: 32 lbs

Dimensions: 7.6" x 22.8" x 16.1"
MartinLogan 5-Year Warranty
