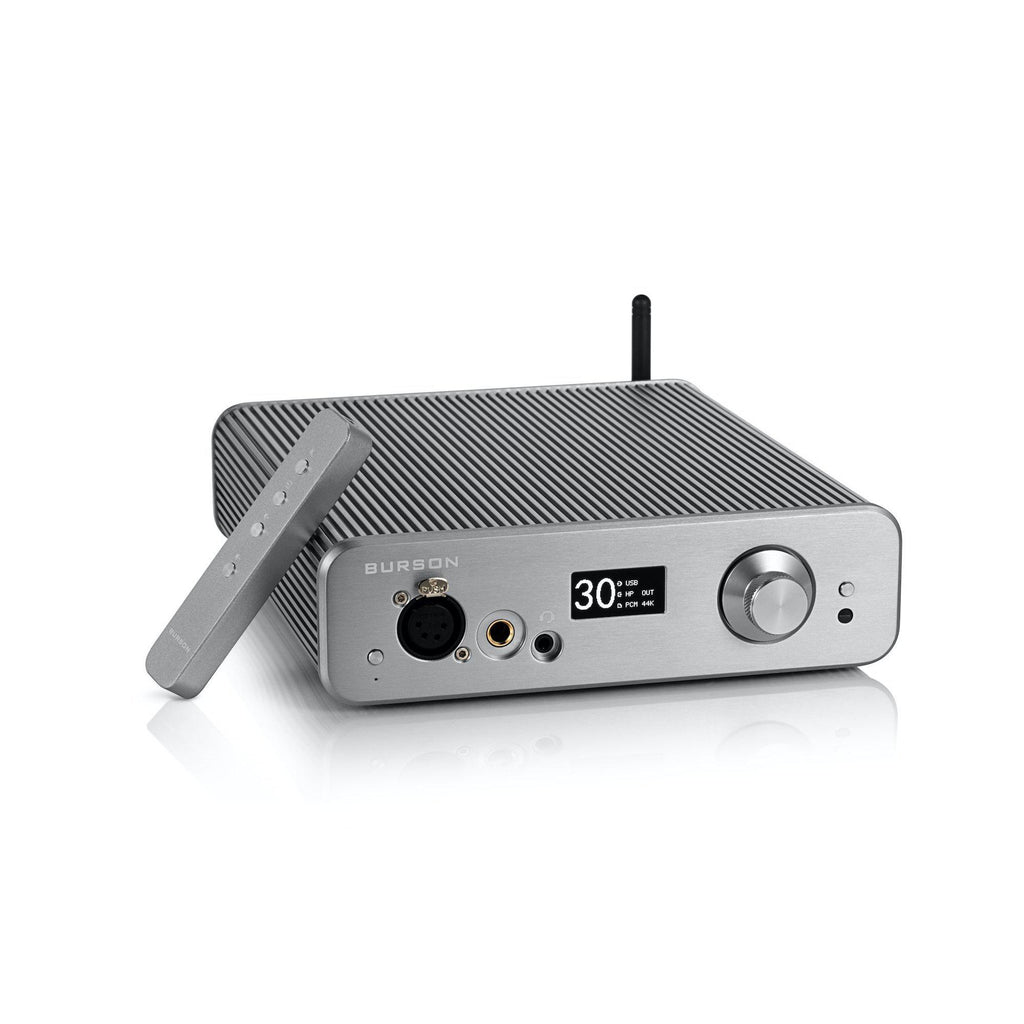

Burson Audio Conductor 3X Performance | Headphone Amp, DAC, and Preamp

The Conductor 3XP Brings Premium DAC / Class A Desktop Amp Performance with a Smaller Footprint and Balanced Output

Features ESS9038Q2M DAC and XMOS USB receiver
Features 6W of power at 16Ω and 3W of power at 32Ω over Balanced output
OpAmps are "rolling-ready" for tailored sound
Check out Burson's new V7 OpAmps for improved performance






Bloom's Take
The Burson Conductor 3X Performance is a great DAC/Amp in its own right, with clear, accurate output and huge soundstage. It also happens to be a great choice if you’re familiar with the Burson Conductor line, and want the Conductor 3X sound at a lower price point, smaller footprint and balanced outputs.
Read our full review here.




From Burson Audio
Some DAC/Amps claim to give you the front row experience in exchange for less soundstage. Others promise a 3D soundstage in trade for fewer details. The Conductor simply gives you everything in the recording, without sugar-coating, the good and sometimes the ugly. You can locate a tapping foot on the stage while enjoying that lingering vibration of air after a keystroke.

Advanced Digital
The Conductor uses the SABRE32/ESS9038Q2M DAC and XMOS USB receiver chips, the most advanced and expensive in the industry. Its Customized USB driver by Thesycon Germany ensures low latency bit-perfect audio playback. The result is incredible processing power, accurately playing back DSD512 and 38bit/786khz audio.


It also features a Qualcomm/CSR8675 Bluetooth 5.0 receiver. Playing back at 24bit/96khz with aptX HD audio codec, it pushes sound quality and ease of use to the highest level.
Max Current Power Supply
The Conductor Performance features the same Max Current Power Supply (MCPS) that has made the Conductor Reference legendary.A technology developed, owned and used exclusively by Burson Audio, the MCPS raises voltage frequency from 50Hz to 170kHz, pushing noise beyond human hearing. It completely overcomings the disadvantages of both linear power supplies and conventional switching power supplies, resulting in incredible dynamic and micro-details.

The Cool Case
We like to turn Class-A amplifiers from monsters with heat-fins into elegant, desktop-friendly machines, and we do it through the Cool Case. Made from high-density aluminum and electroplated to space-grey, the Cool Case is a unified heat-sink keeping the Class-A Conductor cool and optimized. Critics such as Headfonics called it “the new standard” in the audio industry.
Having a footprint that is 30% less than the Conductor Reference and a volume similar to a lunch box, it is beautiful but unobstructive. Take it to work, and no one will raise an eyebrow.
Opamp Rolling Fun
The Conductor Performance comes with Burson V6 Vivid discrete opamps. But don’t let us or anyone dictate your listening experience. The Conductor encourages opamp rolling with gold plated DIP8 sockets along its signal path. With hundreds of audio opamps out there, you have the freedom to tailor your listening experience to your preference.
The Sound
While our Conductor Reference is like Huge Jackman in Kate and Leopold, the completed package, the Conductor Performance is the shredded Wolverine. It’s still him but stripped down! Power and total control of that power will be the overwhelming first impression. It energises every note and space in between, bringing accuracy and micro-details. The C3 performance is for the perfectionist who works hard and plays harder.



Specs



Measurement

Package Content



Input impedance:
39 KΩ
Conductor 3X Ref.Model # M180X
USB Cable


Frequency response:
± 1 dB 0 – 58Khz
Remote Control

24V Power Unit


THD:
<0.0015%
Power Cable



Output impedance (Headphone Amp):
0.5Ω




Output impedance (Pre Out / DAC Out):
1Ω / 25Ω






General



Inputs:
USB, Optical Toslink, BlueTooth 5.0, microphone
Weight:
app. 3 kg


Outputs:
1 x XLR Preamp/DAC1 x RCA Preamp/DAC1 x 6.3mm Headphone1 x XLR Headphone
Dimensions:
200 X 250 X 60mm








Impedance (Headphone Jack)
Power XLR / SE
Signal to Noise Ratio
Separation


16Ω
6 / 3W
96db
99%


32Ω
3 / 1.5W
98db
99%


100Ω
1 / 0.5W
95db
99%


150Ω
660/330mW
96db
99%


300Ω
330/115mW
96db
99.5%








DAC Spec

Asynchronous Isochronous USB Spec



Channel Separation:
142 dB @ 1KHz, 135 dB @ 20KHz
Desktop OS:
Windows XP, 7, 8, 10 Mac OSX


THD+N:
0.0005% @ 1KHz, 0dBFS
Desktop OS:
iOS* , Android (OTG support)


COAX & Toslink / SPDIF :
up to 24bit 192K
PCM Support:
PCM ? 768kHz @ 16, 24 or 32bits




Native DSD:
Native DSD 64 / 128 / 256 / 512


Bluetooth Input
Bluetooth 5.0 aptX HD (Qualcomm CSR8675)
DSD over PCM:
DoP64 / DoP128 / DoP256/Dop512




Conductor 3 Comparison




Model
Retail Price
Dimensions (mm)
Digital
Analogue
Power Supply
Others


Conductor 3XR
2,199USD
255 x 270 x 70
ESS9038Q2M DAC X 2

7.5Wpc XLR / 3.5Wpc SE

MCPS X 5
Analogue Inputs X 2


Conductor 3R
1,799USD
255 x 270 x 70
ESS9038Q2M DAC X 2
7.5Wpc SE
MCPS X 5
Analogue Inputs X 2


Conductor 3XP
1,399USD
200 X 250 X 60
ESS9038Q2M DAC X 1
6Wpc XLR / 3Wpc SE
MCPS X 3



Conductor 3P
1,099USD
200 X 250 X 60
ESS9038Q2M DAC X 1
4Wpc SE
MCPS X 3





In the Box

Burson Conductor Unit
IC Opamps for warranty diagnostic use.
USB-C to USB-C Cable
Remote Control
Hex key

Power Supply
Burson Conductor 3X Performance User Manual
