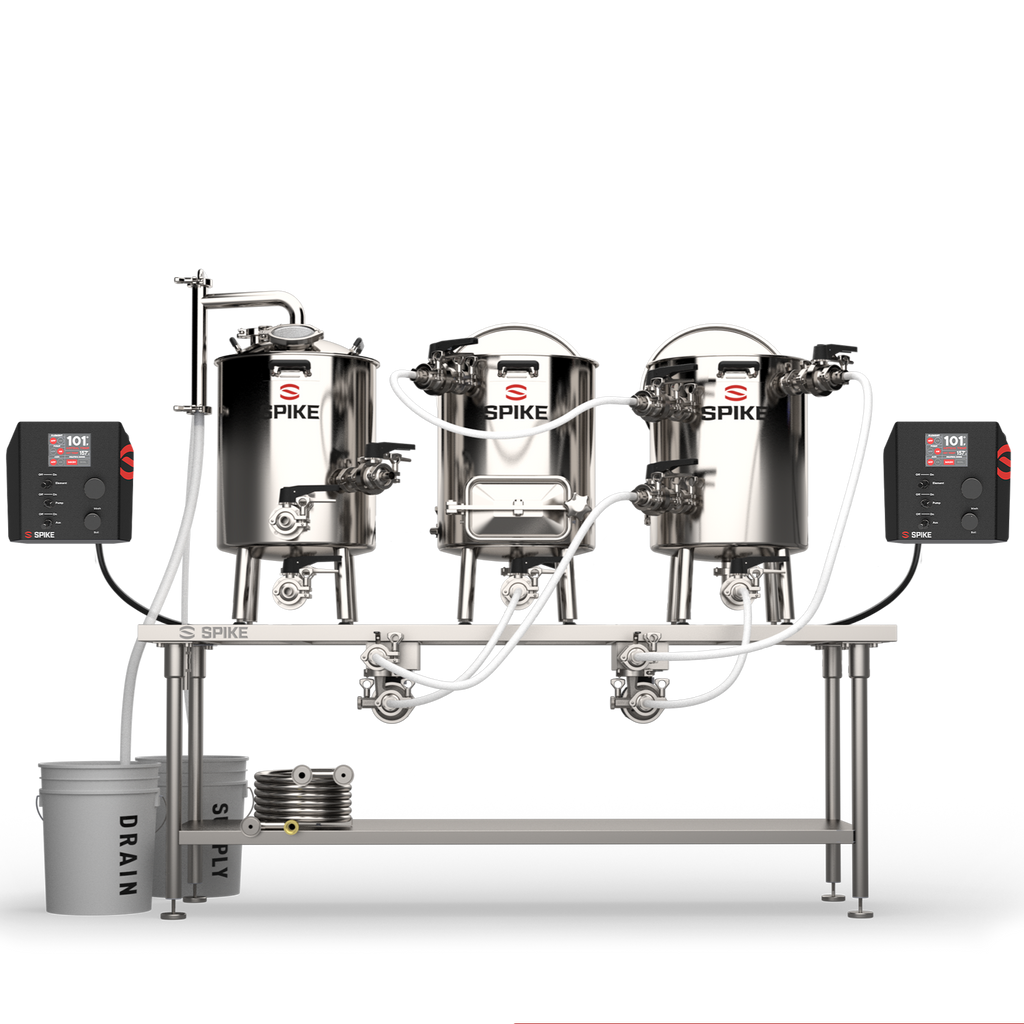

Spike Trio System - Bottom Drain, Double Batch |

The Trio is an electric HERMS system, meaning that the heat exchanger, located inside the HLT, is used to heat the mash tun. This gives precise control of mash temps and prevents any scorching of the grain. Used by both home and professional brewers alike, the ease of use, repeatability and temperature control of the Trio will make your Brew Day a breeze.
Features:

Stream Condensing Lid
2.5 - 6 gallon batch size
All tri-clamp connections; 0 threaded connections
(3) 10gal brewing tanks; HLT, MT and BK
30a (240v) PID controlled brewing panel

Controls the 2 heating elements (1 tank at a time) and pumps
All electrical cords included
Only (1) 240v outlet required; compared to 3 outlets with other systems


 (2) 5500w tri-clamp integrated ULWD heating elements (also available in 208v)
25' x 3/8" 304SS HERMS coil with quick connect fittings
All valves, pickup tubes, false bottom, etc are included
FDA approved food grade Silicone tubing and quick connect fittings
(2) Food grade pumps; stainless steel head with custom tri-clamp heads

Double Batch Panel - Upgrade:

Ability to use heating elements in both the HLT and BK simultaneously
Heat strike water in HLT for second batch while boiling first batch; makes for a quick double Brew Day!
While boiling, heat water in HLT for use in system cleaning. Ready to clean right after boil.
