Spike Brewing | CF30 Gallon Conical Fermenter with TC100 Temperature Control Bundle

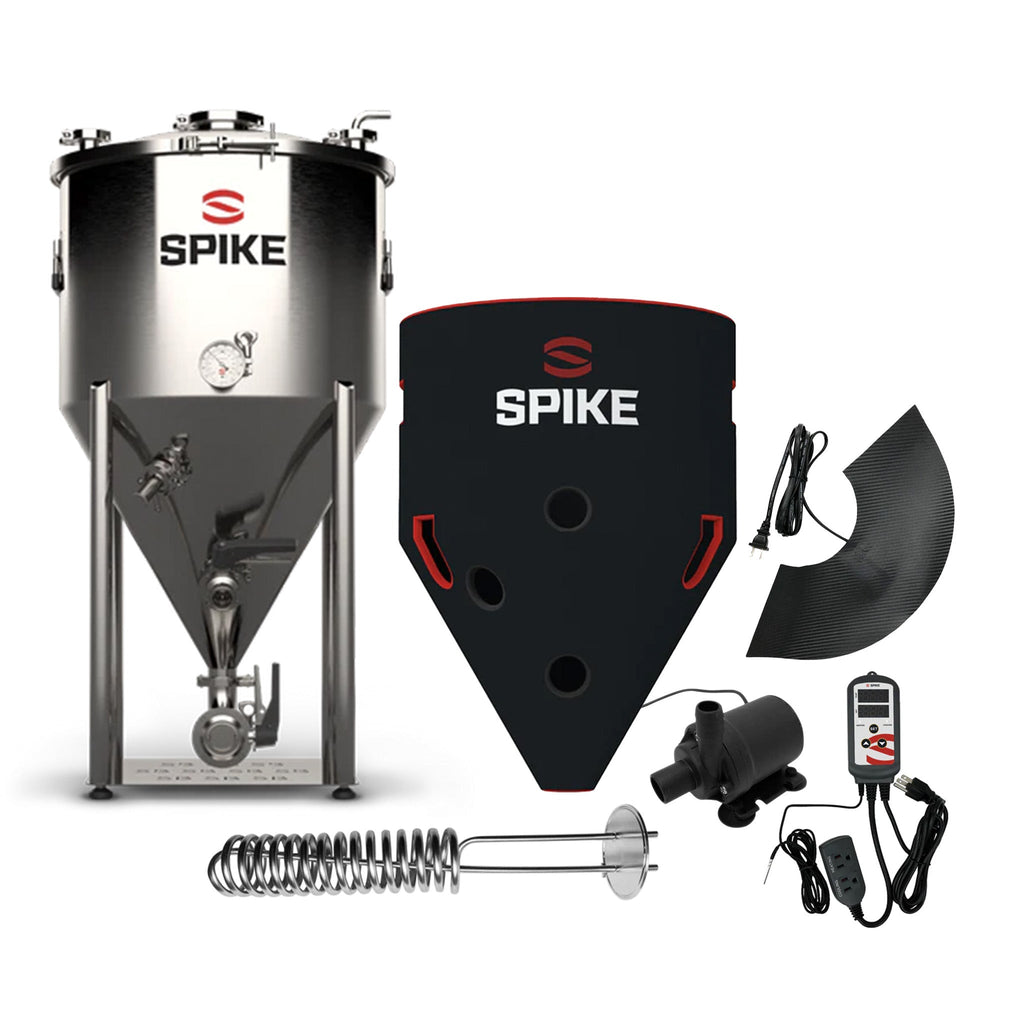

What's Included:

Spike Brewing | CF30 - 40 Gallon Conical Unitank Fermenter

Spike Brewing | TC-100 Heating and Cooling Bundle / CF30


Professional and innovative by design, the Spike Conical Fermenters (CF) provide the highest quality level of fermentation, no matter if you have a full-scale brewery or a space in your garage. Along with the new TC100 Temp Control System, you'll have everything you need to Elevate Your Brew Day!
CF30 - 40 Gallon Conical Fermenter


304 stainless steel; 1.5mm (16ga)
All sanitary welded ports (no-weldless fittings)
Designed for 1/2bbl to 1bbl batches


40 gallon total capacity

15psi working pressure (always use a 15 psi pressure relief valve)

  Use for pressure transfers
  Use for pressure fermentation
  Use as a brite tank

Etched volume markings
24" wide by 46¨ tall
Fully polished finish

Lid Includes:

Stainless band clamp for attaching the lid

Completely removable lid for easy cleaning

4" TC modular top port

Allows for hop additions, temp control coil, top sight glass, etc

(3) 1.5" TC ports:


Blow Off Port – Dedicated port for an airlock or blow off tube

Hop Port – Dedicated port for adding hops

PRV Port – Dedicated port for your pressure relief valve (PRV)
Body Includes:

Huge 2" TC bottom dump with butterfly valves (no more stuck yeast dumps)
1.5" TC racking port with butterfly valve
1.5" TC sample valve (for taking gravity readings)
1.5" TC dial thermometer
Bracing shelf is included with the CF30

All hardware shown HERE is included.

TC-100 Heating and Cooling Bundle



The TC100 temp control system will manage both cooling and heating of your Spike Conical. The digital controller's temp probe will feed into the included thermowell on our CF Series Conical. Also included is a specially fitted neoprene jacket which features reinforced port holes to reduce the chance of ripping during install. Last (and maybe the coolest item) is special insulated tubing. This almost eliminates tube cooling losses and will prevent your cooling lines from sweating all over your floor!
Cooling:When the temp in the conical rises above the set point it will turn on the pump submerged in your cold water reservoir (bucket of ice water, dorm fridge, aquarium or glycol chiller, DIY AC chiller, etc). This will pump cold water/glycol through the temp control coil, which mounts to the lid, cooling your beer until it reaches the controller set point.
Heating:When the temp in the conical falls below the controller set point the optional heater will kick on warming the unit up.
Detailed product guide:Product Guide.pdf
TC100 Package:

Digital closed loop controller (heating and cooling)
Insulated tubing (more efficient and no more sweaty tubes!
Temp control coil
Thermowell
Neoprene insulated jacket

Submersible pump (pumping cold water through the temp coil)

Temp Coil Quick Connect Fittings
Heater (for us northern brewers)

Recommended accessories:


TC to 5/8" barb
Silicone wort transfer hose 1/2" click here
1.5" TC fittings
1.5" TC gasket
CIP spray ball (1.5" TC)
TC carb stone bundle

1x 1.5" TC SS blow off cane OR 2x 1/5" TC SS blow off cane

1.5" TC racking arm
Closed Pressure transfer kit

Spike Conical Assembly Video
3-Port Lid video
Conical User Guide

Spike Carb Stone & All-In-One PRV User Guide
