Rotel S14 | Integrated Network Streamer and Amplifier

Rotel S14 Integrates Design, Experience, and Performance as a Streamer, DAC, and Integrated Amplifier

High resolution network streaming with Roon, TIDAL, Spotify, Qobuz, and more
150W/channel Class A/B speaker output
Wide range of connection options, including ethernet, USB, S/PDIF, and Bluetooth
32-Bit Premium ESS DAC


Streaming Simplicity
The Rotel S14 Integrated Network Streamer is an all-in-one solution providing convenient, intuitive access to the near limitless catalog of online music. High resolution audio including MQA from Tidal and Qobuz is rendered with detailed precision through a 32-bit ESS DAC delivering 150 Watts of Class AB power into 4 ohms.

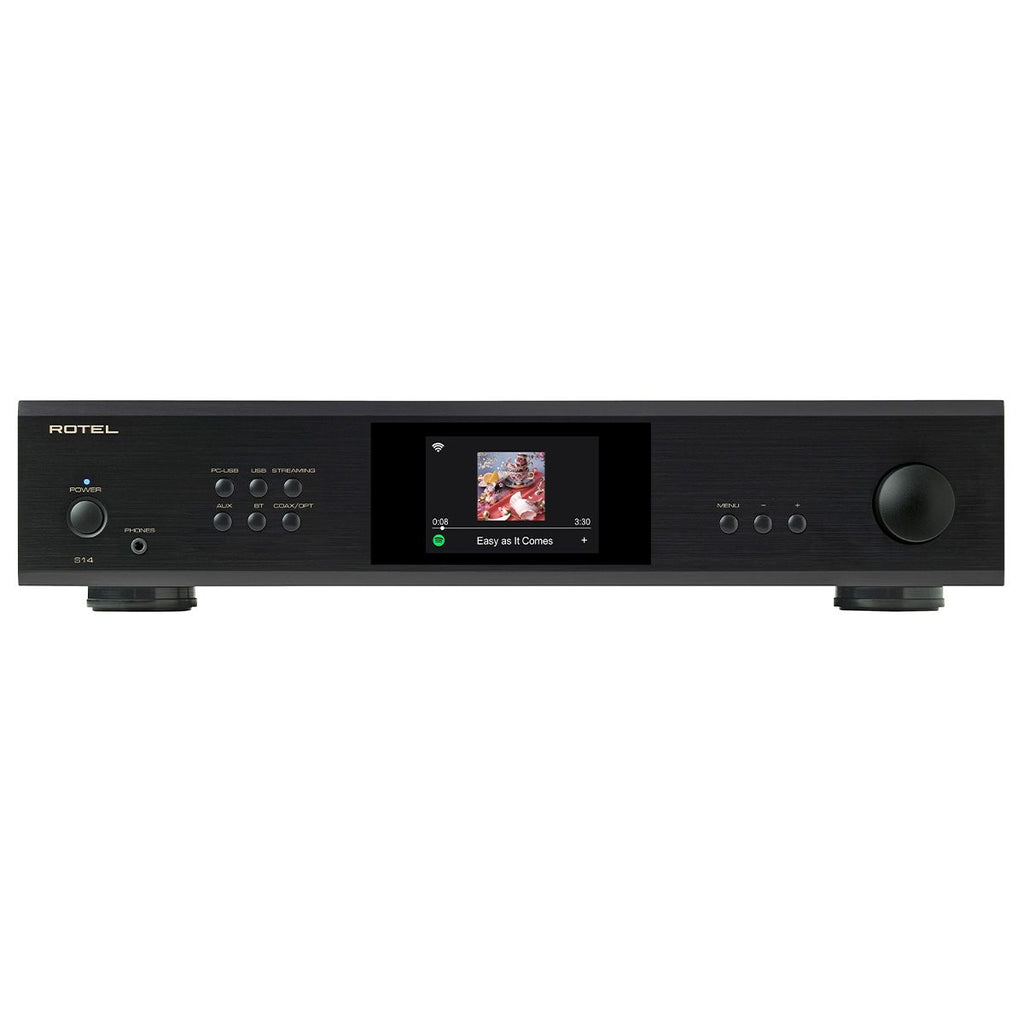

The front panel color display presents album artwork, track, and title information and simplifies the setup and configuration process using the included remote control. The S14 connects to both hard-wired and dual-band Wi-Fi networks for installation flexibility.
Stream using your favorite music App or use the S14 iOS and Android Apps to access thousands of Internet Radio stations, Podcasts, and high-resolution music from Tidal and Qobuz. The S14 is fully certified Roon Ready and also supports Spotify Connect, Airplay2 , and Google Cast for the ultimate ease of streaming your music.
The S14 also includes Coaxial, Optical, Analog, PC-USB and aptXTM HD Bluetooth source inputs for legacy devices and even plays MP3, WMA and AAC files from flash drives.
This just-add-speakers solution continues to deliver on the promise of quality, performance, and value synonymous with Rotel.

Specifications
Input/Output

Digital Inputs

Ethernet/Wireless Network

PC-USB/USB-B
Digital Coax
Optical Digital

Analog Inputs

RCA Aux Input

Outputs

RCA Preamp Output
3.5mm Headphone Output

Speaker Output: Dual conductor bare wire, connector lug, or dual-banana
RCA Sub Output


Maximum Power Output: 150W/per channel (4ohm), 80W/per channel (8ohm)

Total Harmonic Distortion (THD): <0.04%
Frequency Response


Line Level Inputs: 10Hz - 100kHz, ±0.5dB

Digital Inputs: 10Hz - 90kHz, ±2.0dB

Max SNR (IHF "A" Weighted)


Line Level Inputs: 100dB

Digital Inputs: 98dB

Input Sensitivty


Line Level Inputs: 200mV

Digital Inputs: -20dBfs

Input Impedance


Line Level Inputs: 47kΩ

Digital Inputs: 75Ω


Input Overload



Line Level Inputs: 4.5V


Size, Weight, and Power Consumption


Dimensions: 17" × 3 5/8" × 13 1/2" (430 × 93 × 345mm)

Front Panel Height: 3.15"

Weight: 20.17lbs.

Power Requirements: 120V, 60Hz

Power Consumption: 280W

Standby Power Consumption: <0.5W
