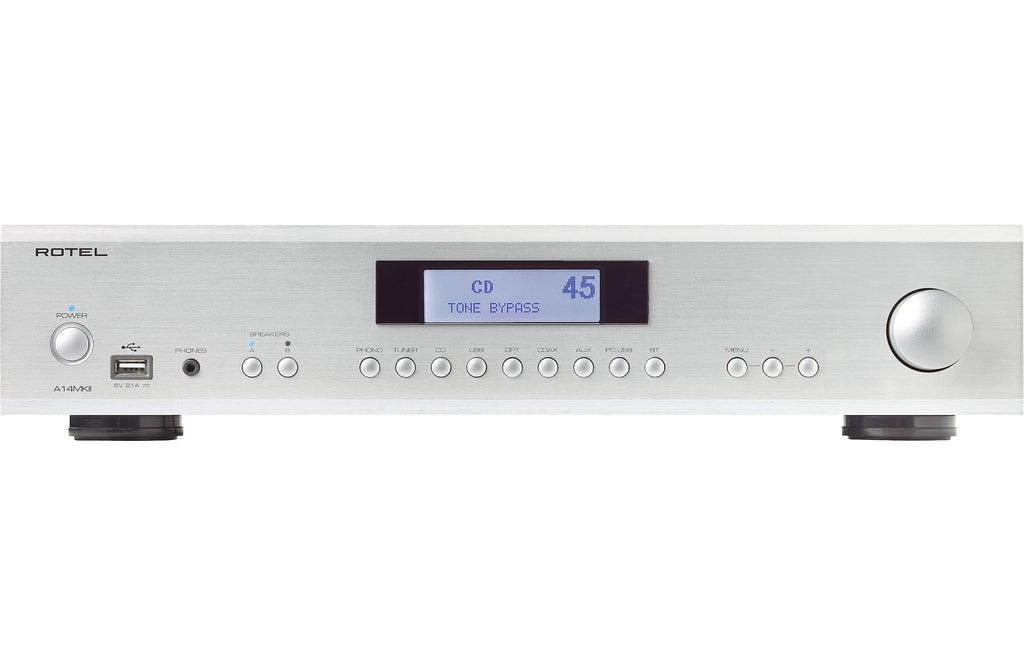

Rotel A14 MKII Silver | Integrated Amplifier

For Power and Simplicity, Rotel A14 Provides Incredible 2-Channel HiFi Value

Delivers  your music to your speakers, whether your using an iPhone or a Vintage turntable
Up to 150W peak Class A/B speaker output
Integrated Ethernet Streaming with Roon.
Built-in Phono Stage

Connect Virtually Any Source to HiFi Power

The A14 MKII Integrated Amplifier delivers 80 Watts per channel of Class AB amplification from your favorite sources including analog, digital, PC-USB with MQA, wireless aptXTM and AAC Bluetooth and Moving Magnet Phono stage. Critically tuned power supply, DAC and amplifier circuits ensure the A14MKII will deliver countless hours of entertainment.
The A14MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.
A fully redesigned Digital to Analog circuit topology utilizes a Texas Instruments 32-bit/384kHz DAC with exhaustive tuning and hand selection of all critical components delivering a fuller, richer and more balanced presentation of the music. Improvements to the power supply and amplifier gain stages further refine the audio whether you are listening to a big band orchestra or a solo vocalist.
Tone controls provide treble and bass adjustments in 1dB steps up to +/- 10dB personalizing your experience for all music genres, moods and settings with a BYPASS mode eliminating unwanted noise and distortion.
The A14MKII supports your favorite sources including analog, digital, PC-USB with MQA, high-quality wireless aptX™ and AAC Bluetooth streaming and even a Moving Magnet Phono stage for vinyl fans.
The A14MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music. Control system integration is available utilizing Ethernet, RS232, 12V-Trigger and remote IR connections.
Dual 5-way speaker binding posts allow Zone 2 installations with relay-controlled selection of the A-B speaker outputs. The front panel graphic display includes a large volume indication and audio stream information.
The A14MKII is comfortable in any setting delivering countless hours of audio entertainment.
Specifications
Input/Output

Digital Inputs

PC-USB/USB-B
Digital Coax x 2
Optical Digital x 2

Analog Inputs

RCA CD Input
RCA Tuner Input
RCA Aux Input x2
RCA Phono

Outputs

RCA Preamp Output
3.5mm Headphone Output

Speaker Output: 2 x Dual conductor bare wire, connector lug, or dual-banana
RCA Sub Output


Maximum Power Output: 150W/per channel (4ohm), 80W/per channel (8ohm)

Total Harmonic Distortion (THD): <0.018%
Frequency Response


Phono Input: 2 0Hz - 20kHz, ±0.5dB


Line Level Inputs: 10Hz - 100kHz, ±0.5dB

Digital Inputs: 10Hz - 90kHz, ±2.0dB

SNR (IHF "A" Weighted)


Phono Input: 90dB

Line Level Inputs: 100dB

Digital Inputs: 103dB

Input Sensitivty


Phono Input: 3.4mV

Line Level Inputs: 230mV

Digital Inputs: -20dBfs

Input Impedance


Phono Input: 47kΩ


Line Level Inputs: 24kΩ

Digital Inputs: 75Ω


Input Overload



Line Level Inputs: 4.5V


Size, Weight, and Power Consumption


Dimensions: 17" × 3 5/8" × 13 1/2" (430 × 93 × 345mm)

Front Panel Height: 3.15"

Weight: 19 lbs

Power Requirements: 120V, 60Hz

Power Consumption: 280W

Standby Power Consumption: <0.5W
