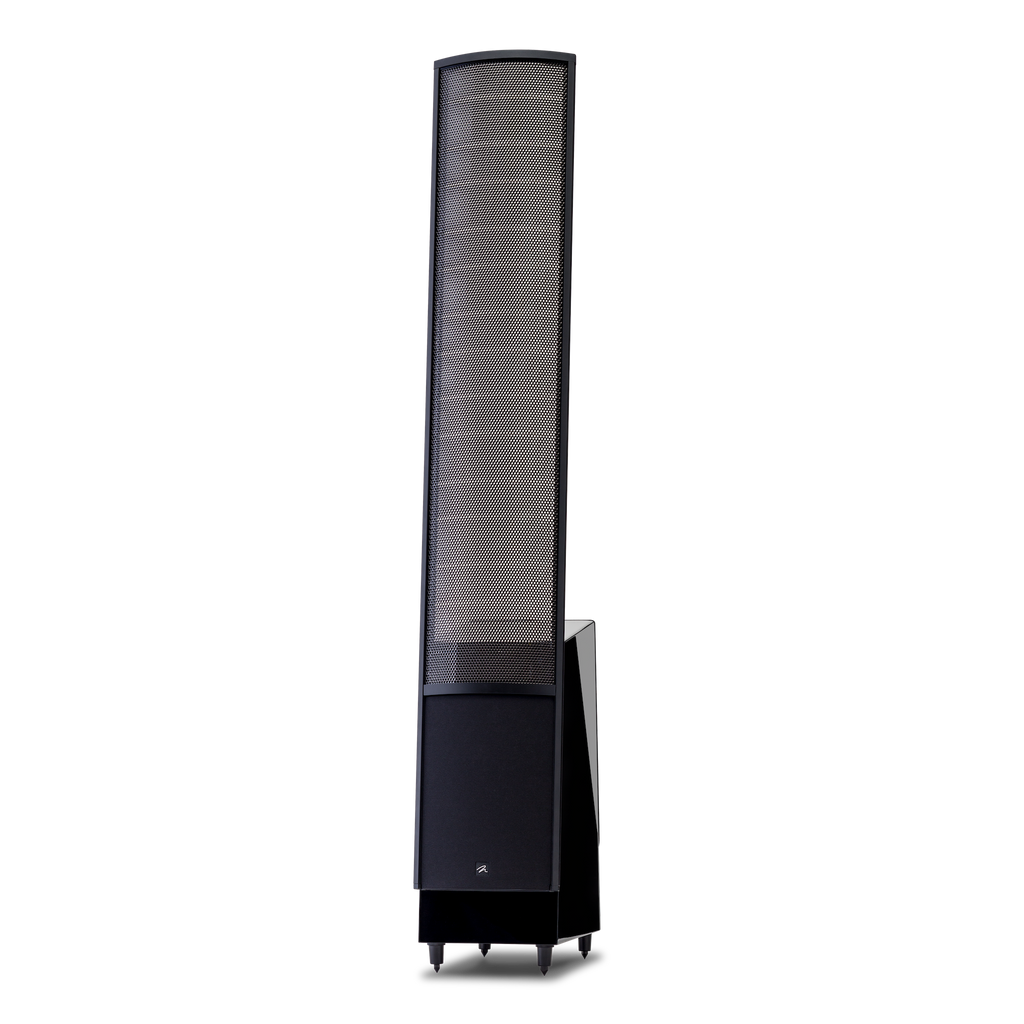

MartinLogan ElectroMotion ESL X | Electrostatic Floorstanding Loudspeaker (Single Unit)

ElectroMotion ESL X Provides Flagship Electrostatic Speaker Performance

New larger electrostatic transducer can fill any room in your house with sound
Dual 8" high-excursion woofers provide incredible bass in a compact design
Sets a new benchmark in price versus performance


CLS XStat Transducer
CLS™ (Curvilinear Line Source) technology has been an essential ingredient of every electrostatic loudspeaker ML has produced, and the ElectroMotion ESL X is no exception. Proprietary manufacturing methods enable construction of electrostatic panels as cylindrical sections. Their gentle horizontal curvature solves the problem of obtaining good high-frequency dispersion from a large radiating surface without compromising overall sound quality or reliability.
DiPolar Radiation Pattern
A true dipole, The EM-ESL X radiates sound with equal intensity from the front and back of its diaphragm, but the outputs are in opposite phase. As a result, sound waves rippling out toward the sides meet at the speaker's edge and cancel. That and the relatively large size of the ElectroMotion ESL X's electrostatic panel cause output at the sides to be very low relative to that of a conventional loudspeaker. This in turn minimizes side-wall reflections that tend to muddle sonic detail and stereo imaging. While the reduction in output to the sides contributes to the astonishing clarity for which electrostats are revered, the energy reflected off the wall behind the speaker opens up and deepens the sound.
Superb Bass Integration
To seamlessly blend audio output from the high and mid-frequency electrostatic panel to the low-frequency dual woofer system, the ElectroMotion ESL X features a proprietary Vojtko™ topology filter utilizing custom air core coil and low DCR steel laminate inductors, polyester film capacitors in series, and low DF electrolytic capacitors in parallel.

Specifications


Frequency Response: 41–22,000 Hz ±3dB

Recommended Amplifier Power: 20-400 watts per channel

Horizontal Dispersion: 30°

Vertical Dispersion: 40" line source

Sensitivity: 91 dB/2.83 volts/meter

Impedance: 6Ω, 1.6 @ 20kHz (compatible with 4Ω, 6Ω, or 8Ω rated amplifiers)

Crossover Frequency: 400Hz

High Frequency Transducer: XStat™ CLS™ electrostatic transducer


Panel Dimensions: 40" x 8.6"

Radiating Area: 344 in²



Low Frequency Transducer: (x2) 8” high excursion, high-rigidity paper cones with extended throw driver assembly, non-resonance asymmetrical chamber format, bass reflex

Components: Custom-wound audio transformer, air core coils, large steel laminate inductors, polyester capacitors, and low DF electrolytic capacitors

Inputs: Custom 5-way bi-wire tool-less binding posts

Weight: 52 lbs

Dimensions: 59.2" x 9.4" x 20.7"
MartinLogan 5-Year Warranty

In the Box

Floor-standing hybrid electrostatic loudspeaker
AC power adapter (attached 10' DC cord)
Cloth grille
(x4) preinstalled feet
User's Manual
Product Registration Card
