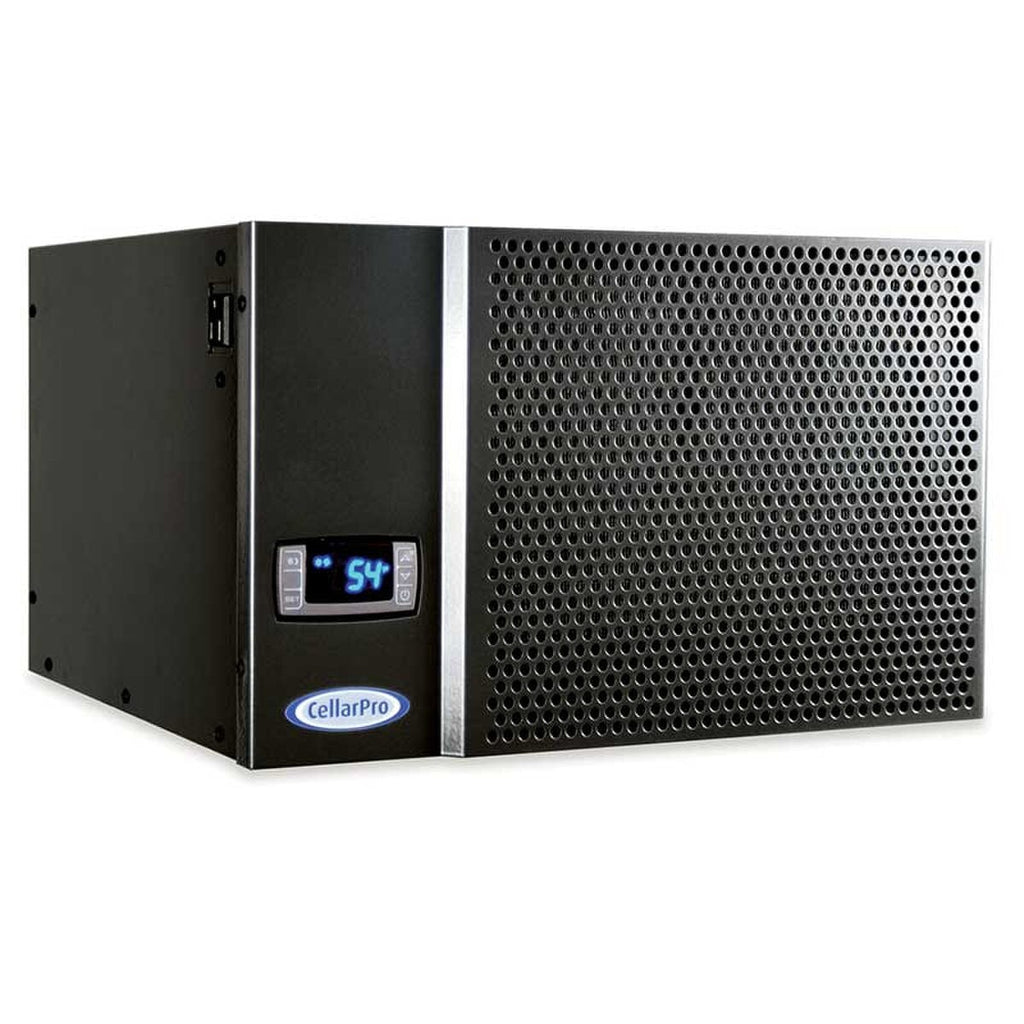

CellarPro 1/6 Ton Wine Cooling Unit (200 Cu.Ft. Capacity)

This CellarPro 1800QT-HE wine cooling unit delivers 1420 BTUH total / 1170 BTUH sensible capacity at 55F, making it one of the most efficient 1/6-ton cooling systems for small wine cellars and wine cabinets. Built with low-GWP R-290 refrigerant, high-efficiency EC fans and aluminum evaporator coils, this unit delivers quiet operation, strong airflow, and stable temperature and humidity control when installed in a properly constructed cellar.Key Benefits:

High-performance cooling: 1420 total / 1170 sensible BTUH @ 55F for optimal temperature and humidity management

Low-GWP refrigerant: R-290 refrigerant with ultra-low GWP and zero ODP

Quiet, efficient airflow: EC fan technology for reduced noise and improved airflow efficiency

Longer coil life: Aluminum evaporator coils to help resist formicary corrosion and support longer service life

Adjustable humidity control: Helps protect cork integrity and wine labels

Compact design: Ideal for tight cabinet installs and small cellar environments
Performance Overview:

Setpoint range: 51F-62F (cellar temperature)

Designed to maintain ideal cellar conditions: Helps maintain humidity levels that support cork and label protection

Best fit: Small residential wine cellars and wine cabinets requiring 1/6-ton cooling power
The 1800QT-HE cooling unit is an ideal upgrade path for customers searching for:
A quieter wine cooling unit
A more energy-efficient 1/6-ton wine cellar cooler
A modern R-290 wine storage cooling solution
Installation Requirements:For optimum performance and warranty coverage, the 1800QT-HE must be installed in a properly insulated, airtight wine cellar with a vapor barrier.Recommended conditions and sizing assumptions:
R-19 insulation or better
No glass walls
Vapor barrier installed on the warm side
Ambient temperature up to 85F (sizing assumption)
Access to fresh air from 40F to 95F (condenser air)
Ducting guidelines:
Cold side cannot be ducted
Hot side can be ducted only when using a CellarPro duct hood and auxiliary fan
This model is engineered for indoor use only.
Technical Summary:

Cooling capacity: 1420 total BTUH, 1170 sensible BTUH

Nominal size: 1/6 ton wine cooling system

Refrigerant: R-290 (ultra-low GWP)

Fan type: EC (electronically commutated)

Application: Wine cabinets, small wine cellars

Certification: ETL-certified
